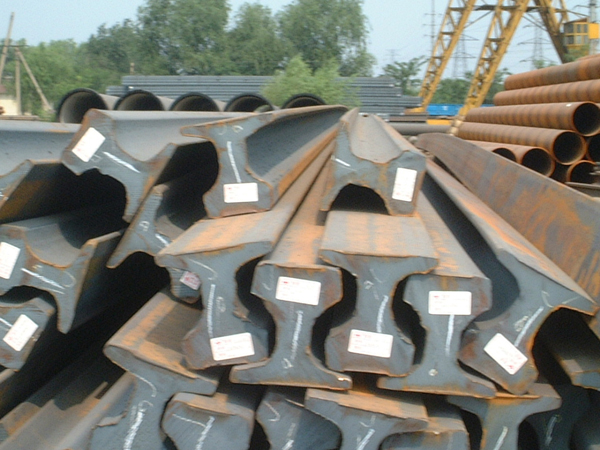

Crane Rail From Ada

Quantity:
  • GB52KGS-118KGS
  • GB, ASTM, JIS, EN
  • Crane Rail
  • Lifting Rail, Rail, Steel Rail
  • 52-118kgs
  • 12 Meters
  • U71mn
  • 1000000 Tons
  • Available
  • Available
  • 30 Days
  • by Sea
  • South America, Southeast Asia, Africa, Mid East, Eastern Asia
  • HM-ST19
  • Exported Packing
  • China
  • 1000000 Tons
 Steel rail:
1)Light rail: Material Q235B\50Q\55Q. Specification 9kg/m\12 kg/m\15 kg/m\22 kg/m\30 kg/m.
2)Heavy rail: Material U74\U71Mn\PD3. Specification 38kg/m\43 kg/m\45 kg/m\50 kg/m\60 kg/m.
3)Crane rail: Material U71Mn, Specification QU70\QU80\QU100\QU120.

Besides all kinds of international standard steel and iron products, We also can empolder, develop and manufacture various non-standard products, especially for some metallic products with high technical requirements & biggish manufacturing difficulty & lighter, thinner and complicated cross-section shape. We hope every organization and individual will use our service widely and contact us at any moment. We promise we will assure the manufacturing period and quality to satisfy you. Our company is highly praised for the steel and steel products exported to over 30 countries around the world.

"Credit first, quality first and service first" is our first tenet. We are glad to service for all fields of people domestic and overseas. We sincerely want to cooperate with you on the basis of mutual benefit.

Executive Standard:YB/T5055-93
Type Size (mm)
Unit weight
(kg/m)

Material

Length
(m)
Head width
(mm)
Height
 (mm)
Bottom plate
(mm)
Waist thickness
(mm)
QU 70 70 120 120 28 52.8 U71Mn 12
QU 80 80 130 130 32 63.69 U71Mn 12
QU 100 100 150 150 38 88.96 U71Mn 12
QU 120 120 170 170 44 118.1 U71Mn 12
